Home / Equipment & diagnostic centres
Equipment and diagnostic centres

From one X-ray room to a complete diagnostic centre

Our printers are installed and linked directly to X-ray, CT and MRI systems at the International Maritime Hospital, The Bank Hospital and Sonotech Medical & Diagnostic Centre, and we supply the consumables for every modality: X-ray, CT, MRI, mammography and ultrasound. The contracted biomedical engineers who install and service our printers also have experience installing X-ray, CT and MRI systems. With our manufacturer partners, we plan, supply, install and support complete imaging rooms for hospitals, private clinics and company health facilities. You deal with one team from the first site visit to the last service call.

What we supply and support

Imaging equipment

Supplied on demand and quoted per project, either CIF Tema Port or fully delivered and installed.

Digital radiography (DR)

Complete digital X-ray rooms with wireless flat-panel detectors, automatic positioning and direct links to printers and PACS (the hospital's digital image archive).

Mobile X-ray

Bedside imaging for wards, theatres and intensive care.

CR digitisation

Upgrade film-based rooms to digital with CR cassettes, imaging plates and readers.

Mammography

Breast imaging systems and Fujifilm mammography film.

CT and MRI

Sourced on demand from our manufacturer partners, with site planning and installation.

Ultrasound

Colour Doppler scanners from Mindray, SonoScape and Chison, with 2–3 probes.

CT contrast injectors

Dual-head injectors from Medrad and Nemoto, and the syringes they use.

Dry film printing

Fujifilm DryPix and Carestream dry laser printers, connected by DICOM (the standard medical imaging link).

How a project runs

Eight steps, one accountable team

  1. Needs and site assessmentPatient volumes, room space, power and budget, checked on site.
  2. Room design and shieldingA pre-installation guide, plus shielding and room approval to Nuclear Regulatory Authority (NRA) requirements.
  3. Equipment selection and quotationThe right system for your workload, with a clear price and delivery plan.
  4. Shipping, clearance and deliveryImport, customs clearance, port charges and transport to your site, all handled.
  5. Installation and commissioningBy our contracted biomedical engineers, who have experience installing X-ray, CT and MRI systems, to the manufacturer's procedures.
  6. Operator trainingHands-on training for radiographers and technical staff at handover.
  7. Warranty and maintenance12-month parts-and-labour warranty with preventive maintenance visits, then annual service contracts.
  8. Supplies for the life of the systemFilm, contrast and consumables from our regular stock, so the room keeps working.
Featured systems

Systems we supply

United Imaging uDR 566i-A digital radiography system

United Imaging uDR 566i-A

Motorised floor-mounted digital radiography system for busy general X-ray and occupational health screening. Quoted by us in 2026 to Yellow Power International, Oyarifa, Accra, as a complete room with a Fujifilm DryPix Edge imager.

Generator
50 kW, 40–150 kV, automatic exposure control
Detector
17″ × 17″ wireless flat panel, 3072 × 3072 matrix
Positioning
Motorised wall stand, automatic tube-detector tracking and centring
Software
AI-assisted image quality check (uAid), patient dose recording
Connection
DICOM to printers and PACS
Fujifilm DryPix Edge dry laser imager

Fujifilm DryPix Edge

Dry laser imager for hard-copy films. No chemicals and no darkroom.

Speed
About 110 films an hour at 35 × 43 cm
Film sizes
Five sizes across three daylight-loading trays
Films
Fujifilm DI-HL (blue base), DI-HLc (clear) and DI-ML (mammography)
Power
Standard single-phase supply
Connection
DICOM print

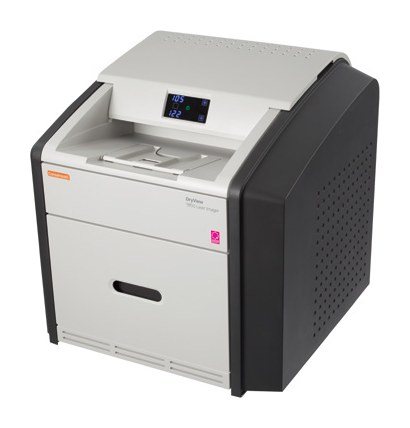

Carestream DryView 5950 laser imager

Carestream DryView 5950

Tabletop dry laser imager for general radiography and mammography.

Speed
Up to 70 films an hour at 35 × 43 cm; up to 110 at 20 × 25 cm
Sharpness
508 dots per inch, 14-bit grey scale
Film sizes
Five sizes; two loaded at once in daylight cartridges
Mammography
Ready for digital and CR mammography, no upgrade needed
Connection
DICOM built in

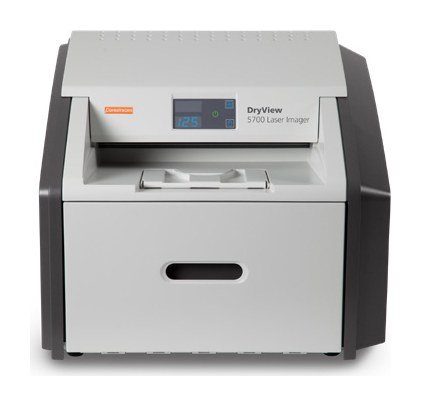

Carestream DryView 5700 laser imager

Carestream DryView 5700

Compact, low-cost dry laser imager for clinics and smaller departments.

Speed
Over 40 films an hour at 35 × 43 cm; over 70 at 20 × 25 cm
Film sizes
35 × 43, 28 × 35, 25 × 30 and 20 × 25 cm
Loading
Daylight cartridges of 125 sheets; change size in three steps
Size
47 × 61 × 66 cm, 54 kg
Connection
DICOM built in

Specifications from the manufacturers' published brochures. Final configuration is confirmed on each quotation.

Before installation

Is your room ready?

We send a pre-installation guide when you order and help you through every point. For a typical digital X-ray room you will need:

  • A room built and shielded to Nuclear Regulatory Authority (NRA) requirements
  • A stable three-phase power supply (380–440 V) brought to the equipment position
  • Air-conditioning, and the civil and electrical works in the guide
  • Space for the operator's workstation behind protection

Service and maintenance plans

  • 12-month parts-and-labour warranty from commissioning
  • Preventive maintenance visits during the warranty
  • Service visits at your facility, on call
  • Annual service contracts after the warranty
  • Steady supply of film, contrast and consumables
Ask about a service plan

Planning an X-ray room or a diagnostic centre?

Tell us about your facility. We'll visit, advise on the room and send a clear quotation, supplied only or fully installed.

Request a quoteWhatsApp us
